TAG ‘E-Z’ Fab Pipe Cutting and Bevelling

Range: 1" - 24"

The E-Z Fab is a revolutionary new cutting & bevelling system for pipes. Ideally suited, but not limited to workshops, and high productivity process environments.

TAG ‘E-Z’ Fab Pipe Cutting and Bevelling

High speed process pipe cutting & bevelling
• UNIQUE Touch Screen NC Servo Electric Drive
• Combines accuracy with safety
• Several Automation modes
• Any material
• Customisable to your needs

The E-Z Fab is a revolutionary new cutting & bevelling system for pipes. Ideally suited, but not limited to workshops, and high productivity process environments.

The E-Z Fab utilises a similar principle to our clamshell split frame cutting & bevelling machines. However, the rotating, working inner ring is 1 piece, and is housed in a cast outer body, meaning strength, and rigidity.......And speed. Due to its stability (and hugely in part due to the awesome 2kw Electric Servo Motor, we’ll talk about that more later..) the fact that the ring is 1 piece means that it can rotate at high speed, whilst maintaining a stable, precise cut.



TAG ‘E-Z’ Fab Pipe Cutting and Bevelling

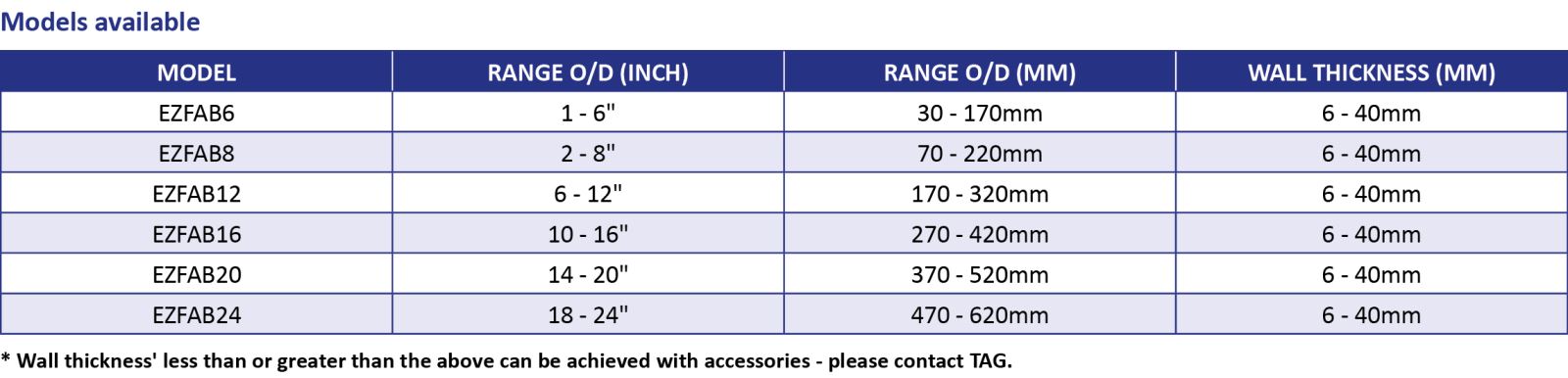

Sizing and Specification


MODEL WORKING RANGE WORKING RANGE METRIC
EZFAB6CB 1 - 6” 33-168mm
EZFAB8CB 2 - 8” 60-219mm
EZFAB12CB 6 - 12” 168-323mm
EZFAB16CB 10 - 16” 273-406mm
EZFAB20CB 14 - 20” 355-508mm
EZFAB24CB 18 - 24” 457-610mm

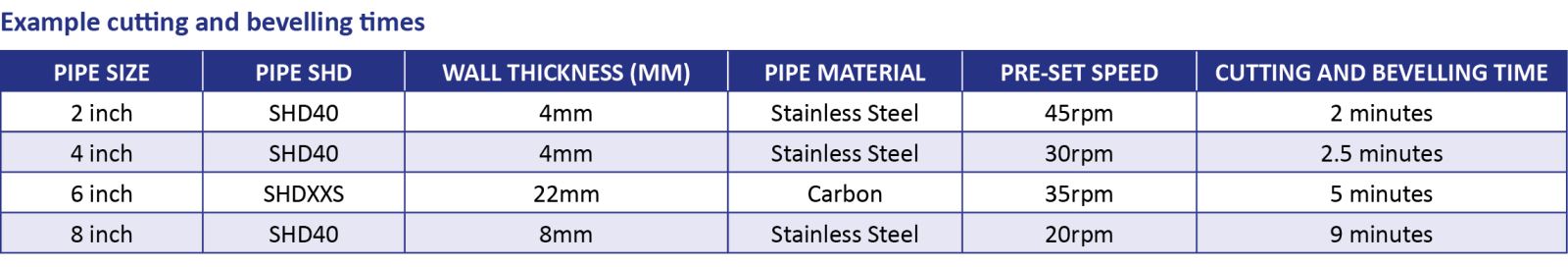

Cutting & Bevelling Times


PIPE DIAMETER WALL THICKNESS (PIPE SCHEDULE) PIPE MATERIAL CUTTING & BEVELLING TIME
2” 4mm (Sch40) Carbon 2 mins
2” 4mm (Sch40) S/S 2 mins
4” 4mm (Sch40) Carbon 2 mins
4” 4mm (Sch40) S/S 2 mins
6” 7mm (Sch40) S/S 6 mins 30 secs
6” 22mm (SchXXS) Carbon 5 mins
8” 8mm (Sch40) Carbon 7 mins
8” 8mm (Sch40) S/S 9 mins
